描述:

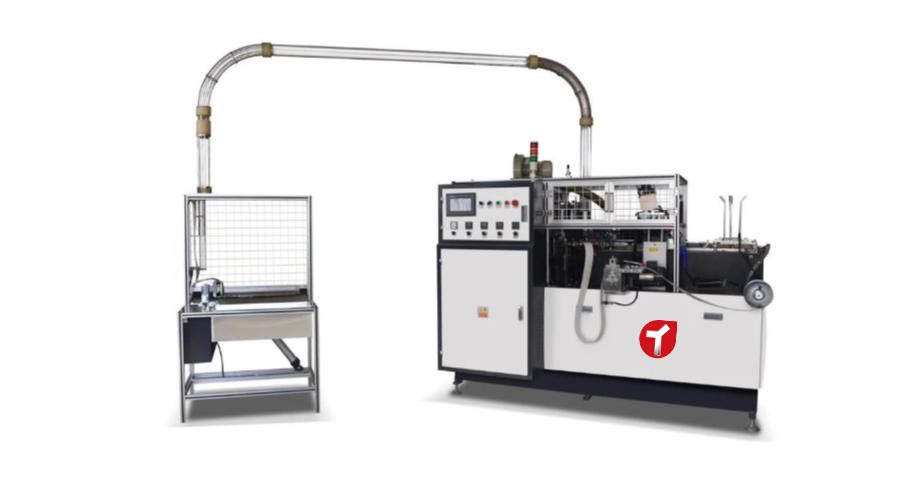

TYO-H16中速机成型机是一种多工位高速自动机,体积小,运输成本低。该机稳定易操作,特别适合中小纸杯的生产。

The TYO-H16 medium-speed machine forming machine is a multi-station high-speed automatic machine with small size and low transportation cost. The machine is stable and easy to operate, especially suitable for the production of small and medium paper cups

Main Technical Parameters

型号

Model

TYO-H16A(Heat sealing)

TYO-H16B(Ultrasonic sealing)

产品名称

Produce Name

Single PE coated(Heat sealing) papercup machine. Just for hot Drink is better

Double PE Coated (Ultrasonic Sealing) paper cup machine.

It is better for hot Drink. Also better for cold Drink

原材料

Raw Material

150-250gsm PE coated paper

150-350gsm PE coated paper

容量

Capacity

70-90pcs/min

70-90pcs/min

适用尺寸

Suitable Size

40ml-16Oz

40ml-16Oz

总功率

Total Power

4kw

4.5kw

重量

(净重/毛重)

Weight

(N.W./G.W.)

1700kg

1750kg

外形尺寸

Overall Dimension

2000x1230x1700mm

2000x1230x1700mm

工作气源

Working Air Source

0.4-0.5m7min

0.4-0.5m7min

海关编码

HSCode

8441309000

8441309000

电压

Power Source

220V 1 phase or 380V 3phase 50Hz, (Better use 380V 3-phase)

We used 220v standard.if your power is different, Please declare in advance.
