描述:

TYO-22中速机成型机是一种多工位高速自动机,体积小,运输成本低。该机稳定易操作,特别适合中小纸杯的生产。

description:

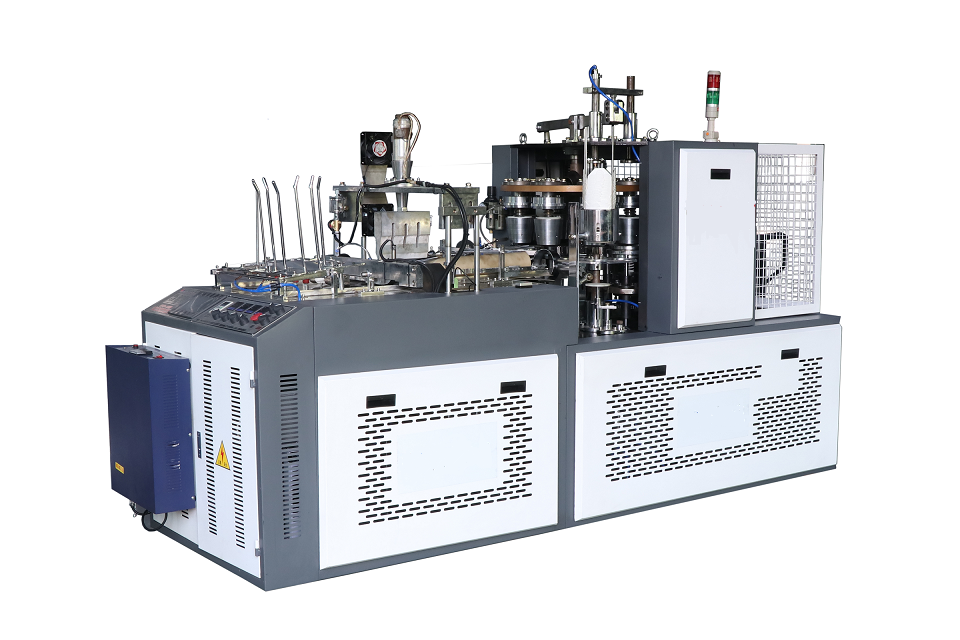

The TYO-22 medium speed machine forming machine is a multi-station high-speed automatic machine with small size and low transportation cost. The machine is stable and easy to operate, especially suitable for the production of small and medium paper cups.

模型

Model

TYO-22 Paper Cup Machine

重量

Weight

1800KG

尺寸

Size

2900mmx1200mmx1850mm

功率

Power

Three Phase 380V4.8KW

气源

Air Source

0.5-0.8MPa0.4/min

容量

Capacity

50-60pcs/min

Paper

Single PE/Double PE

纸张厚度

Paper Thicknes

150-350g/

纸杯尺寸



Paper Cup Size

(A)φ90-110mm

(B)φ130-180mm

(C)φ60-95mm

(D)φ5-10mm

电器零件

Electrical Parts

可编程控制器

PLC

IDEC

菲姆

fiml

WEINVIEW

超音波

Ultrasonic

Chan rong

逆变器

Inverter

Huifeng

Sensoz

Sensoz

Autonics

主马达

Main Motor

Shanghai

冰壶马达

Curling Motor

Shanghai

机械配置

Mechanical configuration

旋转轴

axis of rotation

40CR

直线轴

Linear axis

Hard Axis

间歇式分配器

Intermittent splitter

Shangdong xinjia

模具/克努隆

Mould/Knurlong

CR12 Quench/ 40CR NITRIDING

凸轮

Cam

40CR+NC

转盘

Turntable

Aluminium alloy
