主要特点:

1达到GMP / QS标准净化清洁生产,提高产品卫生安全性,解决交叉污染;

2卷装,成型,打孔,冲孔,出纸,六站同步生产卷膜回收,机械手送料,结构紧凑,性能稳定,操作方便;

3操作区与传动部分完全隔离,避免污染,清洗方便;

4行程可调,模具更换简单,易于改变模具尺寸,适合不同规格;

5采用PLC人机界面,无级调速,PC电路控制板

模具可根据客户要求设计

主要材料用途:

适用于PS / PVC / PET等塑料材料的成型和冲压。厚度为0.15-0.55mm

适用对象:

硬件托盘,食品托盘,药品托盘,PS / PVC / PET等塑料/纸杯盖,盖/盖

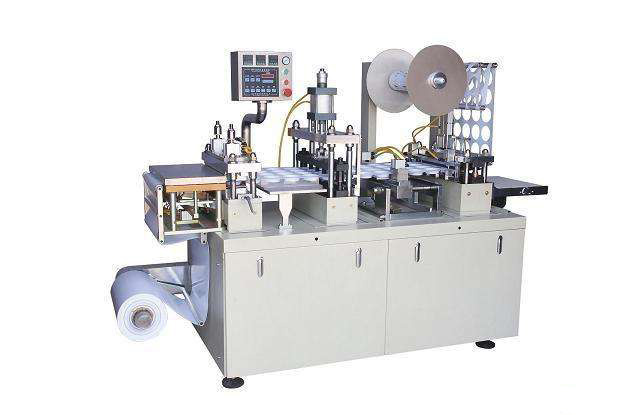

Main features:

1 .The achievement of GMP/QS standard purification clean production, improve product hygiene and safety, meanwhile, resolve cross contamination;

2.Roll Film Loading, Forming, hole Punching, Punching, Output, Roll Film Reclaiming Six-Station Synchronous Production, Manipulator Feeder, Compact Structure & Stable Performance, Easy Operation;

3.Operation Area and Transmission Parts are complete isolation to avoid pollution and convenient to clean;

4.Journey Adjustable, mould replacement is simple, easy to change mould size, suitable for different specifications;

5.Adopting PLC Man Machine Interface, Stepless Frequency Speed Adjustment, PC Circuit control Board;



Mould Can be designed according to customer’s requirement

Main materials using :

Forming and punching for plastic material like PS/PVC/PET etc. thickness 0.15-0.55mm

Applicable Object:

Hardware tray, food tray, pharmaceutical tray, PS/PVC/PET etc plastic/paper cup cap ,lid /cover

Main Technical Parameters

型号

Model

ZBG420

打孔速度

Punching speed

8-32pcs/min

用水量(模具冷却)

Water consumption (Mould cooling)

0.2 m7h Tap water or recycle water

水压力

Water pressure

0.2mpa

气动泵流量

Pneumatic pump flow volume

^0.3m3/min

空气压力

Air pressure

0.5-0.7mpa

PVC硬片

PVC hard pieces

0.15-0.55mm Roll width <430mm

最高 成型面积

Max. Forming area

410x150mm

最高 成型深度

Max. Forming depth

52mm

包装尺寸

Packing size

2200x1000x1800mm

总功率

Total Power

4.6kw

重量

Weight

800kg
