描述:

TYO-120高速纸杯成型机是具有双转盘的机器。 双段高性能,具有自动送纸扇功能,进口加热器侧密封,杯子顶部润滑,自动底部给纸,双卷边艺术品,自动杯子收集和存放功能,可制作单PE和双PE杯子,用于冷 饮料和热饮。

Description:

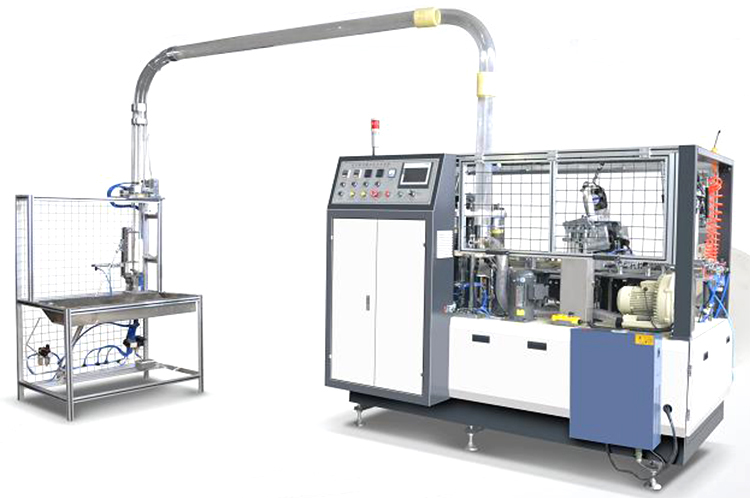

TYO-120 High-speed paper cup forming machine is a machine that have double turntable.dual-segment high-performance with functions of automatic paper fan feeding,imported heater side seal,cup top lubrication,automatic bottom paper feeding,double curling artwork,automatic cup collect and stock,Can make cups both single PE and double PE,for cold drinks and hot drink

型号

Model

TYO-120

重量

Shipping Weight

2500kg

包装尺寸

Packing Specifications

2100x1300x1700mm /pack size:2250*1400*1970

计杯架850x950x1700mm

电压

Electrical Specifications

380V/50HZ

气量

Air Use

0.5 0.8MPa,0.5Cubic/min

生产速度

Production Capacity

                             105120pcs/min

纸张类型

Paper Size

Single PE/DoublePE/PLA

纸张克重

Paper Weight

210-330g/m Molding Paper ±20g/m2

杯底和高

Paper Bottom

40ml-16oz  , bottom diameter:35-80mm, Cup high 35-135mm,

Top diameter: 40-115mm  cup bottom depth:4-12mm
