性能与用途 Properties and uses：
全自动方底纸袋机，用于生产带手挽的手提纸袋。本机特别适用于食品和服装等行业的购物袋批量生产。该机由手挽机将卷绳和纸片卷筒制做成手挽，通过输送系统将手挽送至贴把机组再将原色或印刷好的卷筒纸进行纸绳位预点断、贴片位涂胶、自动粘贴手挽，再由主机将贴有手挽的纸张进行涂边胶、成筒、切断、压痕、底部涂胶、袋底成型并输送出袋，整个过程一次性同步完成。本机采用德国原装进口高速运动控制器（CPU），通过高速总线控制伺服的运行，保证运动稳定，运动曲线平滑，是广大印刷包装厂家首选的全自动手提方底纸袋设备。
Properties and uses：

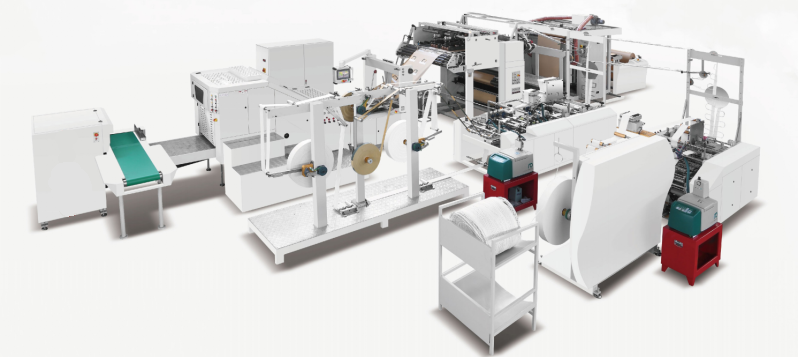

Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
Model | TYSFD-450(H/F)JC |
Cutting length | 380-760mm |
Cutting length | 380-660mm（Flat and Twisted Handle bag） |
Bag width | 220-450mm |
Bag width | 230-450mm（Flat and Twisted Handle bag） |
Bottom width | 100-220mm |
Paper Thickness | 80-150g/㎡ |
Paper Thickness | 80-150g/㎡（Flat and Twisted Handle bag） |
Paper roll width | 630-1370mm |
Paper roll width | 670-1370mm（Flat and Twisted Handle bag） |
Roll paper diameter | ф1300mm |
Paper core | ф76mm |
Patch length | 190mm |
patch width | 50mm |
Handle length | 350mm |
Handle distance | 95mm |
Rope diameter | Ф3-5mm |
Patch paper roll width | 100mm |
patch paper roll diameter | ф1200mm |
patch paper thickness | 100-135g/㎡ |
production speed for bags with handles | 30-90bags/min |
Flat Handle bag requirements | |
Flat rope spacing | 85mm |
Flat rope width | 15mm |
Flat rope height | 100mm |
Patch width | 50mm |
Length of patch | 190mm |
Length of flat rope | 350mm |
Winding patch width | 100mm |
Paperweight | 120g/㎡ |
Hand roll paper | 1200mm |
Machine Speed | 30-150mm |
production speed for bags with handles | 30-90bags/min |
Machine Speed | 30-130bags/min |
Bottom folding type |
|
Cutting knife | Sawtooth cutting |
Printing area | |
Printing width | 100-1260mm |
Printing length | 270-530mm |
Printing speed | 10-100m/min |
Color accuracy | ≤±0.20mm |
Plate thickness （Including the thickness of the double-sided tape） | 2.38mm+0.38mm |
Working Air Current | More than 0.36m³/ minutes, 0.5–0.8 MPa |
Power Supply | 380V 3Phase 60 KW |
Machine weight | 23T |
Machine size | 19000x8500x2700 |
