用途：塑料造粒机用于各种塑料造颗粒使用，主要可供ABS PP PS PP-R PET ABS+PC POM等塑料造粒。

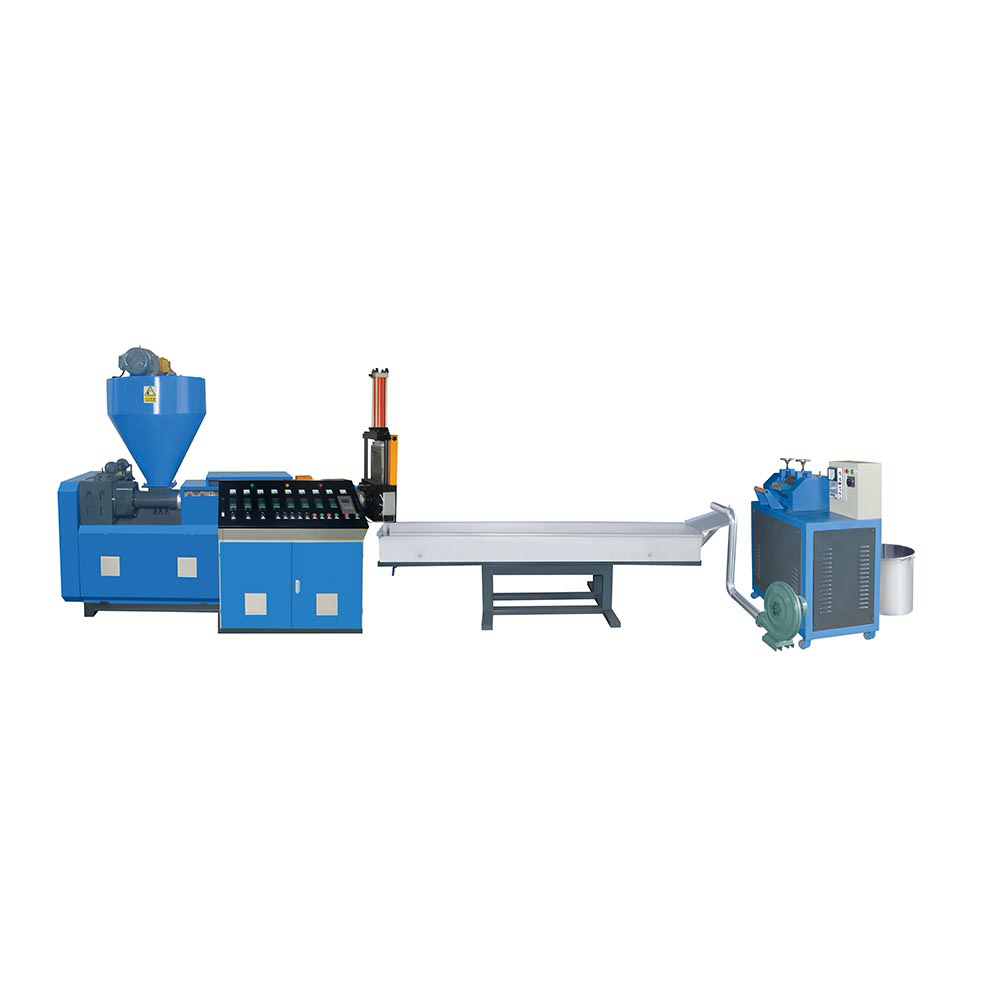

Uses: Plastic granulator is used for various plastic granulation, mainly for ABS PP PS PP-R PET ABS+PC POM and other plastic granulation.
1: The screw is carefully researched and developed, the whole machine and its parts are reasonably equipped, and the lines are heated by three fires and one zero.
2: The screw is designed according to the characteristics of the material, and the output is high, the material made is good in gloss and full of particles, the configuration of the whole machine is increased, the service life of the equipment is increased, and the appearance is rationalized.
3: The reasonable design of the equipment increases the production volume, the products made are of great value, and the maintenance time is reduced, and the maintenance cost is reduced.
4: The granulator has the characteristics of low energy consumption and is equipped with a large torque reduction box and a motor. The screw of this machine is specially designed to have the effect of no dead corners and no iron jamming, which effectively improves the production capacity and increases the plasticization effect of the plastic. It is equipped with a single exhaust , Double exhaust structure, dry material, wet material, washing material can be fully drained and exhausted, so that the particles are strong and full of gloss.
5: High-quality electrical and drive equipment make the machinery and equipment safer and more reliable in use.
3Phase/380V/50HZ (can be customized according to requirements)
Model: 200 Place of Origin: Jiangsu
Diameter: 120mm Length: 2400mm Material: 38CR
Exhaust screw Origin: Zhoushan
Starting power (hydraulic start): 2.2KW Diameter of the screen: 200mm*200mm
Heating power: 15KW Heating system: ceramic heating
Startup in zone 5 Electrical accessories brand: China Chint Contactor: Schneider
Size: 2500*400*350mm Material: Stainless Steel
