主要特点:

这是一种经济环保的打印机,用于打印杯子纸,纸袋纸,适用于单面和双面PE涂布纸,使用水基油墨,可以通过更换打印滚筒和网纹传墨辊来获得不同的杯子打印尺寸和质量。 质量可以达到您的要求。

Main Characteristic:

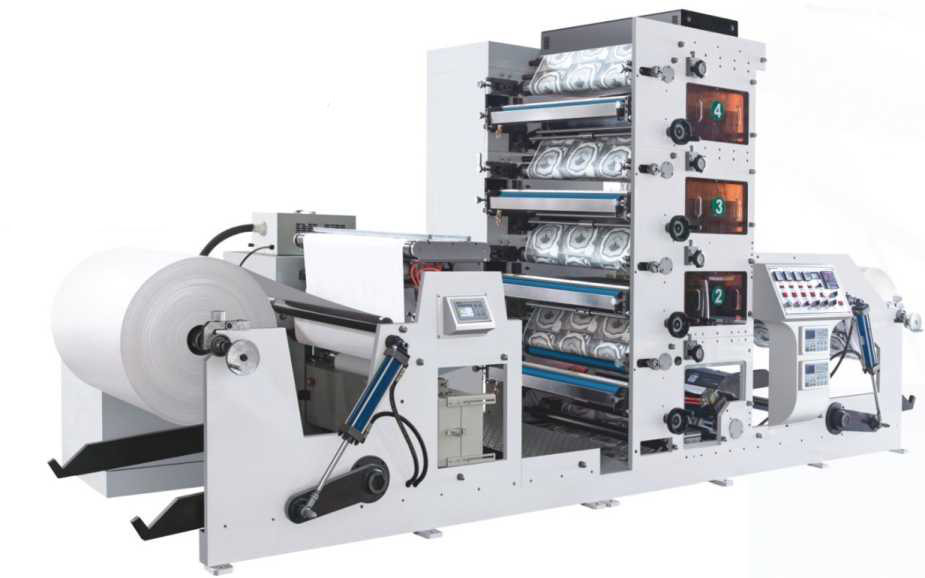

This is an economical and environmental friendly printer for printing cup paper, paper bag paper suitable for both single and double side PE coating paper, use water basic ink, you can get different cup printing size and quality by changing printing cylinders and anilox rollers, so the the printing quality can reach your demend.

Main Technical Parameters

型号

Model

MQ-950

切割面积

Cut Area

950x530mm

速度

Speed

90-120strokes/min

精确

Precision

+/-0.15mms

压力

Pressure

280T

纸材料

Paper Material

135-550g

纸宽

Paper Width

300mm-950mm

卷径

Roll Diameter

w1400mm

核心尺寸

Core Size

3 ” /6 ” /12 *’

气源

Air Source

0.5Mpa

能量源

Power Source

7, 5k w 380V 50Hz

重量

Weight

7000kg

尺寸

Dimension

4000x2100x18500mm

噪声

Noise

w60dB
