途:

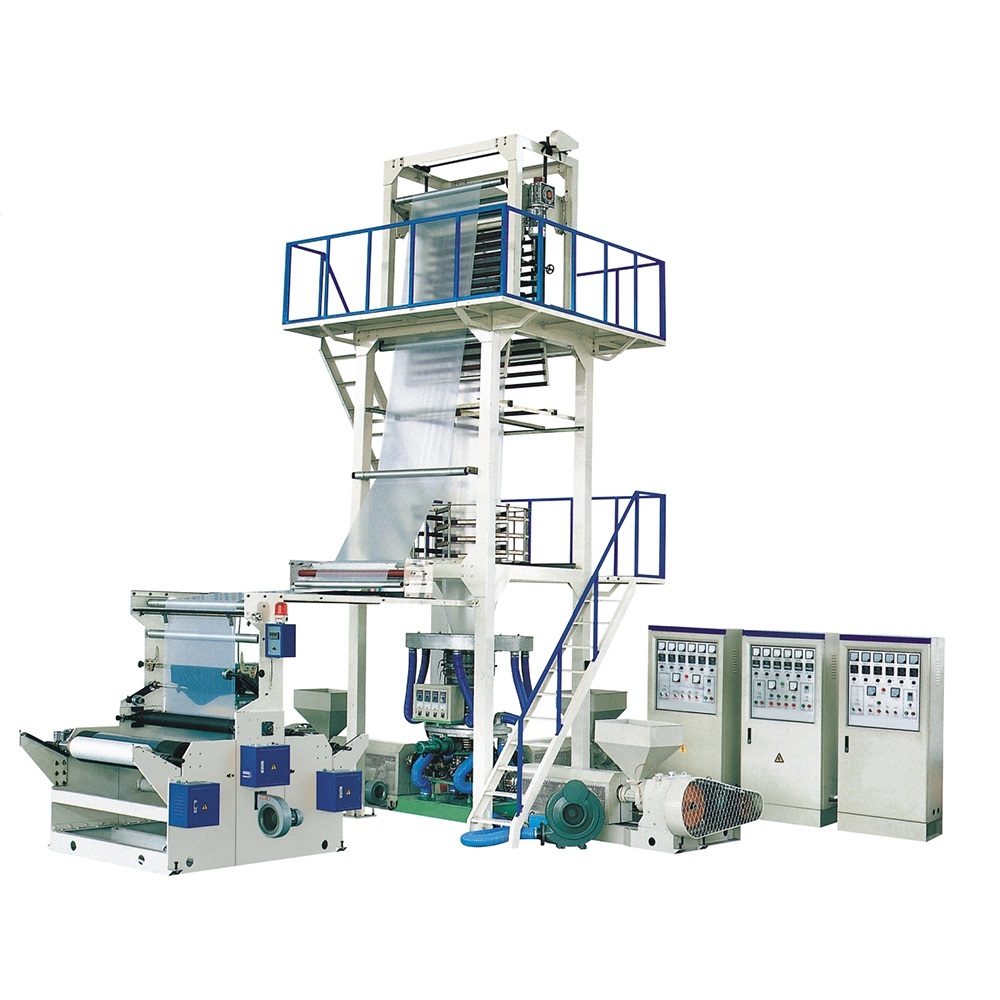

三层塑料共挤吹塑复合膜机组是我厂根据市场需要而研制的,在设计结构上吸收了国内外同类产品先进水平。它用平挤上吹法可连续吹制折幅宽度为800/1500毫米,厚度为0.08毫米的各种 LDPEHDPELLDPEMLLDPEPA 包装膜。这种膜由于其阻隔性好、保湿、防湿、防雨、防风、防霜冻、隔氧、耐 油,因此可广泛用于轻重包装,如各种鲜果、肉食品、酱菜、鲜牛奶,液体饮料等。

特点:
1、机头采用分层式螺旋芯棒型可360度连续旋转。
2、快速换网装置结构合理,易于更换过滤网,使用可靠。
3、机组配备各种功能部件:记长装置、纵切装置、冷却水排,展平
     辊、收边装置等.

Usage:

The three-layer plastic co-extrusion blown film composite film unit was developed by our factory according to market needs, and has absorbed the advanced level of similar products at home and abroad in the design structure. It can continuously blow various LDPE, HDPE, LLDPE, MLLDPE, PA packaging films with a width of 800/1500 mm and a thickness of 0.08 mm by flat extrusion up-blowing method. This film can be widely used in light and heavy packaging due to its good barrier properties, moisture retention, moisture resistance, rain resistance, wind resistance, frost resistance, oxygen barrier, and oil resistance, such as various fresh fruits, meat foods, pickles, fresh milk, liquid drinks .

Features:

1. The machine head adopts the layered spiral mandrel type, which can continuously rotate 360 degrees.

2. The rapid screen changer has a reasonable structure, is easy to replace the filter screen, and is reliable to use.

3. The unit is equipped with various functional components: length-recording device, slitting device, cooling water drain, flattening

Roller, edge trimming device, etc.

型号

model

3SJ-G1000

3SJ-G1200

3SJ-G1500

螺杆直径

Screw diameter

ф55×2 ф60×1

ф60×2 ф65×1

ф65×2 ф70×1

螺杆长径比

Screw aspect ratio

281

281

281

螺杆转速

Screw speed

15-150r/min

15-150r/min

15-150r/min

主机功率

power

15Kw×2+ 18.5Kw×1

18.5Kw×2 +22Kw×1

22Kw×2 +30Kw×1

单台挤出机产量

Single extruder output

50kg/h

80kg/h

100kg/h

模口规格

Die size

ф150 φ200

ф200 φ250

ф250 ф300

薄膜厚度单面

Film thickness

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

薄膜最大折径

Max folding diameter of film

1000mm

1200mm

1500mm

电器总容量

Total Power

76Kw

88Kw

102Kw

尺寸(mm)

Machine Size

6600×4100×5000

6800×4300×6000

7000×4800×7500

重量

weight

6T

8T

10T
