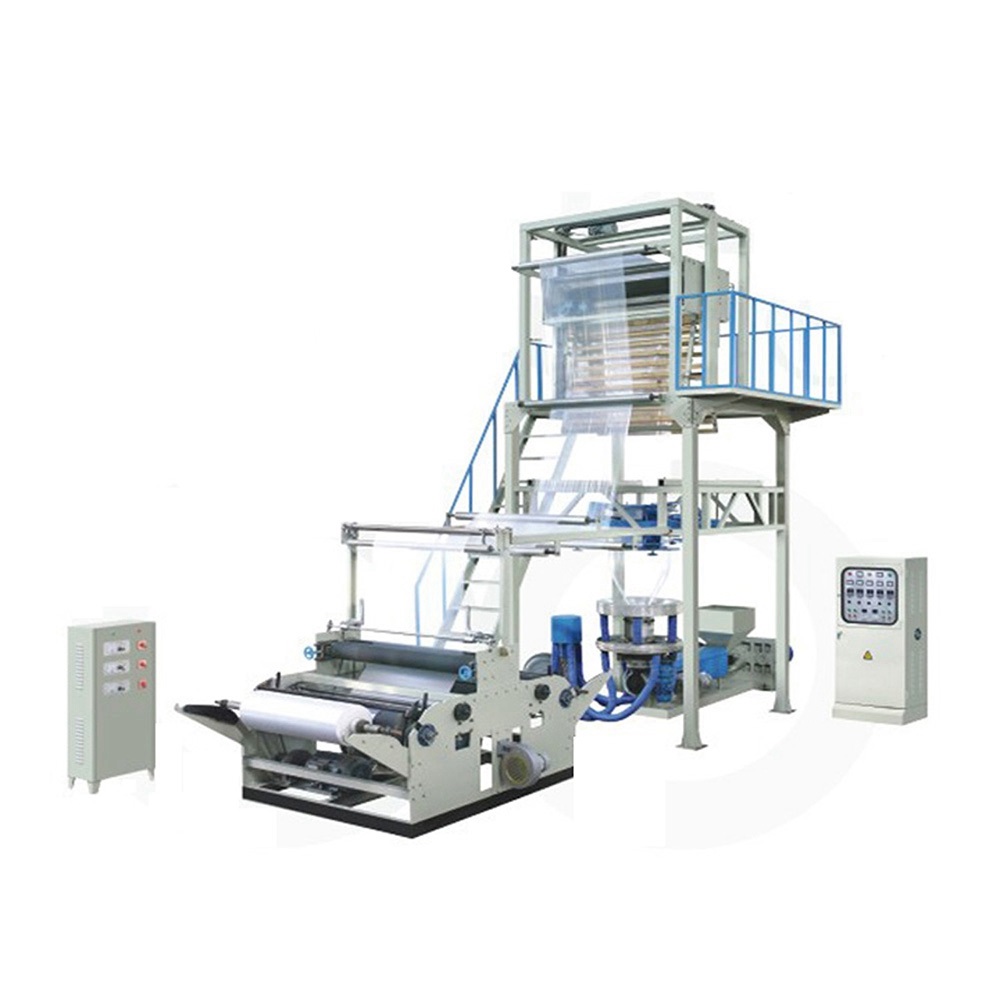

TYSJ-B50、55、65、65-1系列升降旋转机头吹膜机(PE热收缩膜吹膜机)TYSJ-B50, 55, 65, 65-1 series lifting and rotating head film blowing machine (PE heat shrinkable film blowing machine)

点:
用于吹制高低压聚乙烯,产品广泛用于复合膜,包装膜,农业复盖膜, 纺织品,服装袋或膜等包装;主电机采用变频调速,增加了主机调速的稳 定性,并可节电30%,螺杆料筒采用38铬钼铝,经氮化处理,牵引机架采 用升降式,不管吹大、小规格薄膜均能使其冷却效果达到最佳;

选择性配备:

  自动吸料机
2)  压花轮
3)  表面处理
4)  旋转模头
5)  空气压缩机
6)  快换网装置
7)  自动升降

Features:

It is used for blowing high and low pressure polyethylene. The products are widely used in composite films, packaging films, agricultural covering films, textiles, clothing bags or films. The main motor uses frequency conversion to increase the stability of the host speed regulation It can save electricity by 30%. The screw barrel adopts 38 chromium molybdenum aluminum. After nitriding treatment, the traction frame adopts lifting type, which can achieve the best cooling effect regardless of the large or small film;

Optional equipment:

1) Automatic suction machine

2) Embossing wheel

3) Surface treatment

4) Rotating die head

5) Air compressor

6) Quick-change device

7) Automatic lifting

型号

model

SJB50

SJB55

SJB65

SJB70

螺杆直径

Screw diameter

50mm

55mm

60mm

65mm

螺杆长径比

Screw aspect ratio

28:1

28:1

28:1

28:1

螺杆转速

Screw speed

10-100r/min

10-100r/min

10-100r/min

10-100r/min

主机功率

Main motor

11Kw

15Kw

15-18.5Kw

18.5-22Kw

最大挤出量

Extrusion Output

35kg/h

50kg/h

65kg/h

80kg/h

薄膜最大折径

Max Folding Width of Film

600mm

800mm

1000mm

1200mm

薄膜单面厚度

Film thickness on one side

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

总功率

Total power

22Kw

26Kw

30Kw

36Kw

机器重量

Machine weight

2.5T

2.9

3.4T

3.5T

外形尺寸

Machine size

4000 x 1800 x 4600mm

4200 x 2000 x 4900mm

4600 x 2700 x 5800mm

7300 x 2900 x 5800mm
