性能：
它采用PLC可编程逻辑控制器作为主控制，触摸屏。
放卷张力由磁性系统控制。
边缘定位控制系统（EPC）。
配备光电跟踪材料，材料完成后自动停止。
步进电机送料。
光电眼可追踪印刷袋和进纸错误。
矢量变频器作为速度调节器。
超声波用于交叉密封，确保出口标准质量
自动记帐和设定表计数报警。
Performance:
It adopts the PLC programmable logic controller as main control, touch screen.
Unwinding tension is controlled by magnetic system.
Edge positioning control system (EPC).
Equipped with photoelectric tracking material, stopping automatically when the material is finished.
Stepping motor for feeding material.
Photoelectrical eyes for tracking printed bag and the feeding error.
Vector inverter as speed regulator.
Ultrasonic for cross sealing for export standard quality
Automatic accounting and set table counting alarm.
Unit | Specification | Model and origin |

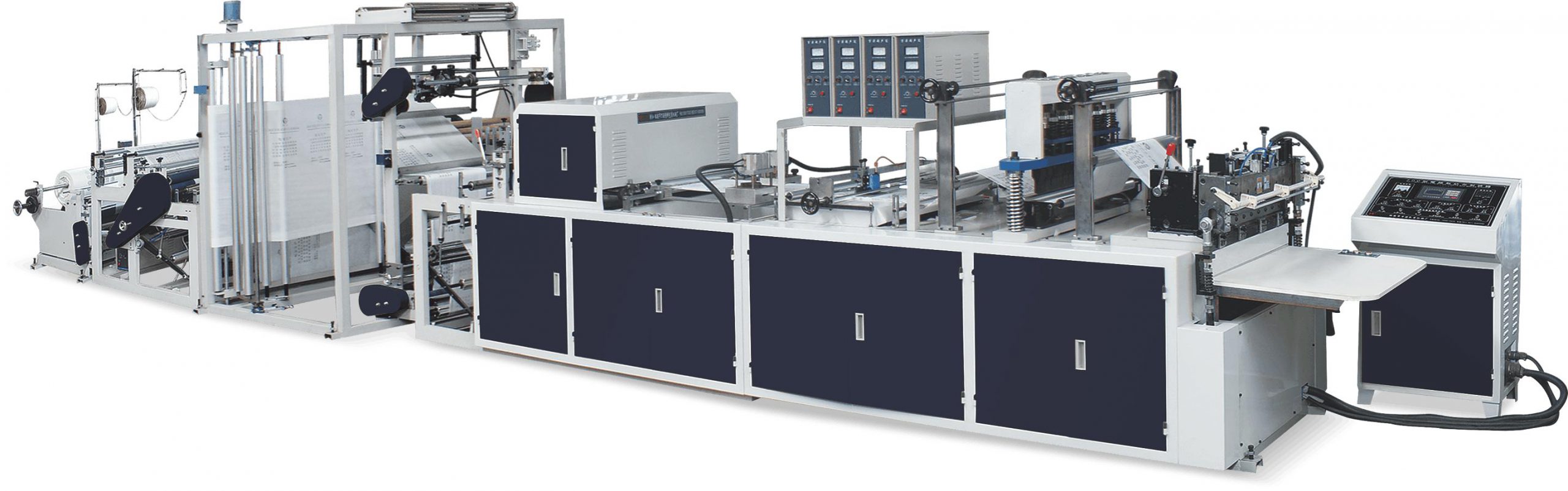

Mainly Technical Parameter | Type | TYB-700 Non Woven Bag Making Machine |
Roller width | 50-1250mm | |
Bag making speed | 20-120pcs/min | |
Bag length | 200-580mm | |
Bag width | 100-750mm | |
Material thickness | 20-100g | |
Power supply | 220v,380v | |
Total power | 6-10Kw | |
Overall size（L*W*H） | 7800*2000*2100mm | |
Mainly machine | Blanking unit | One set |
Horizontal traction unit | One set | |
Vertical fold unit | One set | |
Roller unit | Blanking way | Magnetic powder tension controller |
Roller control device | Air Shaft φ3″（φ76mm） | |
Roller diameter | φ1000mm | |
Controller and Roller System | Correcting deviation device | Automatic correcting deviation system |
Automatic shutdown system | Photoelectric eye | |
Plate | Stainless steel | |
Power control system | Special motor tension driver system | |
Ultrasonic system | Side Sealing 300mm 2 pieces（Taiwan Mingyou） Lace Roller Sealing70mm 2 pieces T-shirt Bag 70mm 1 piece | |
Temperature control system | Temperature control unit | |
Operation | man-machine interface touch control | |
Relay | Omron | |
Pneumatic component | Sns | |
Brand of machine parts | Temperature gauge | Yueqing Wenzhou China |
Switch | Chint | |
Inverter | Defu from Taizhou | |
| Main Touch Screen | （PLC） |
This machine can produce different kinds of non woven bags from 20 to 100gsm .Such as box bag D-Cut bag, T-shirt Bag, Soft handle bag, Vest bag ，side& bottom gusset bag etc. Also can do according to requirements. | ||
Bearing | Haerbin | |
